Our Work
Antony and his fully trained workforce undertake projects for major clients within the construction, engineering and commercial sectors, as well as residential projects. Whether it is a flat roofing or waterproofing system you need, we will provide a professional and reliable service to each of our clients. Antony will work closely with your Architect on the design of your roof, providing a completely seamless service from start to finish.
We continually exceed expectations on all systems and are committed to constantly improving our delivery through fluid liaison with all stakeholders.
Case Studies

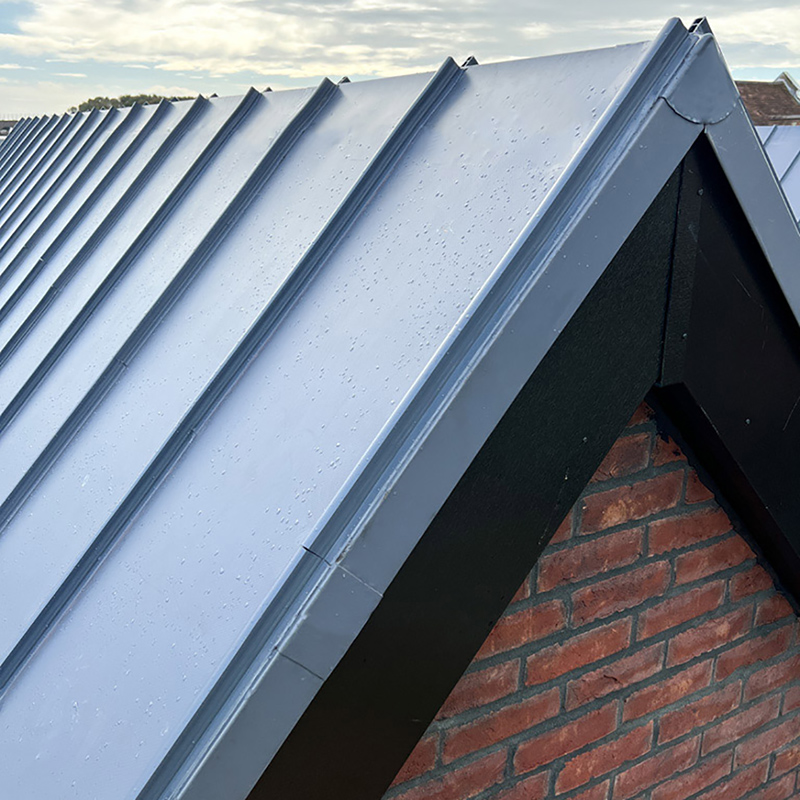

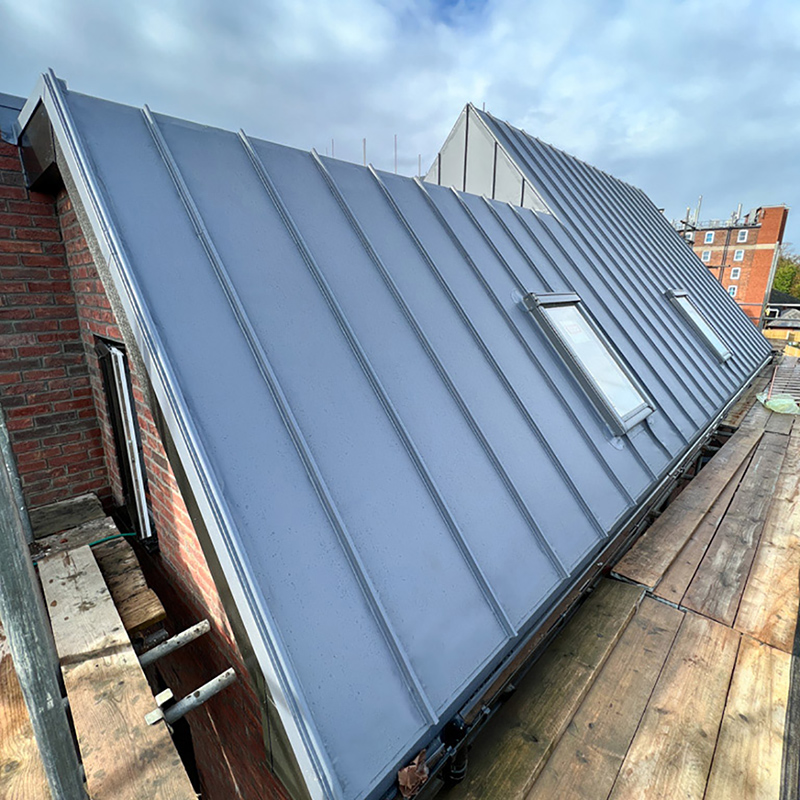

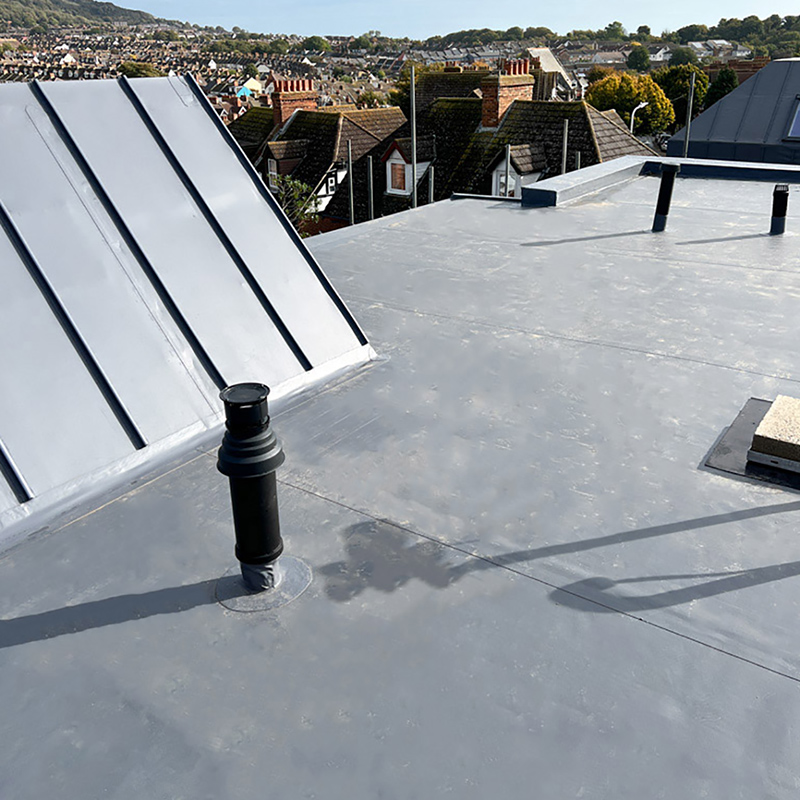

Folkestone, Kent
A recently finished cutting-edge roof which shows a great example of how we tactical a challenge here at A J Lucas Roofing.
The job consisted of two extensive vertical and flat roof areas over 700 square metres.

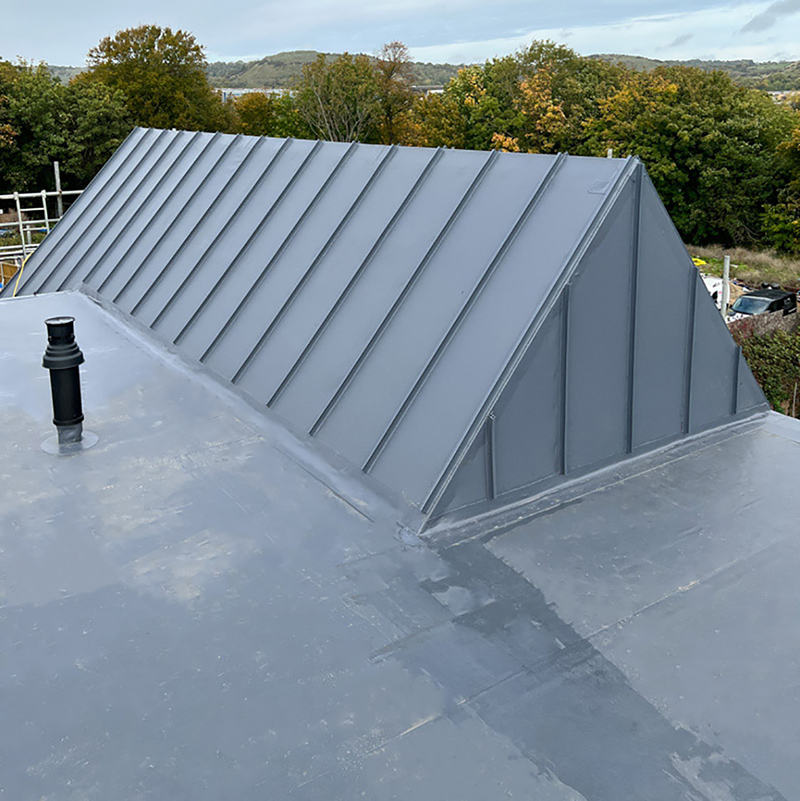

The Vertical Areas
What you see:
- IKO Armourplan P mechanically fixed PVC membrane with 400 centres of standing seams.
What you don’t see:
- A vapour control layer.
- 120mm of rigid insulation.
- A waterproofing layer using mechanically fixed side laps.

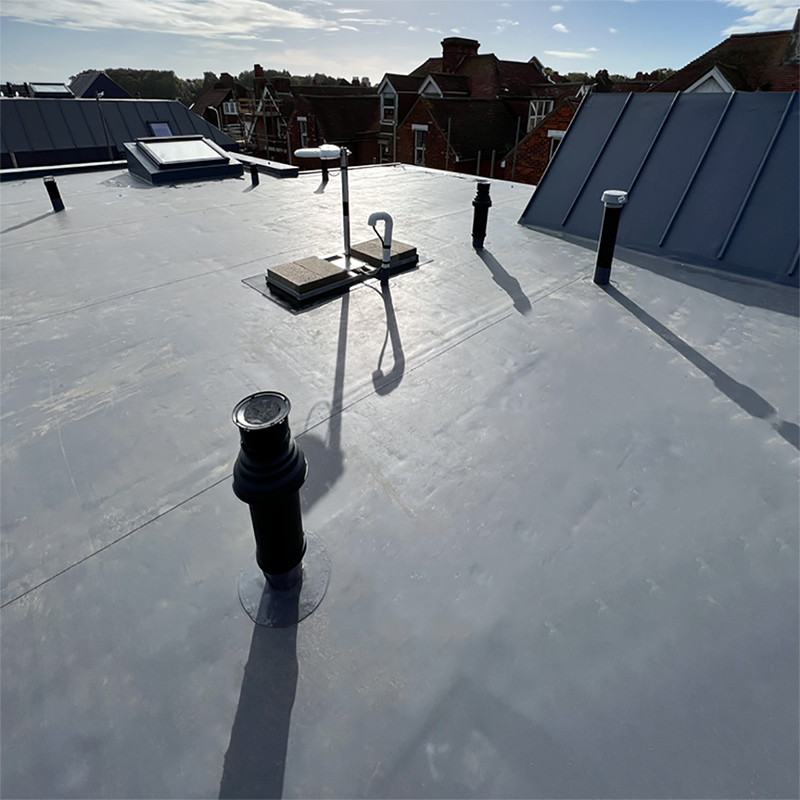

The Flat Area
What you see:
- Fully bonded IKO Armourplan PSG fleece membrane.
What you don’t see:
- A vapour control layer.
- 190mm rigid insulation consisting of a 100mm and a 90mm board mechanically fixed.

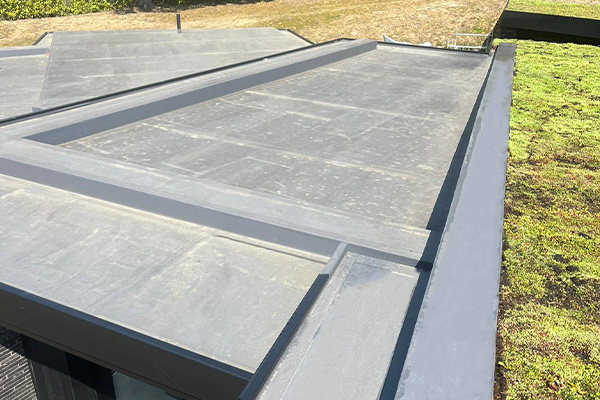

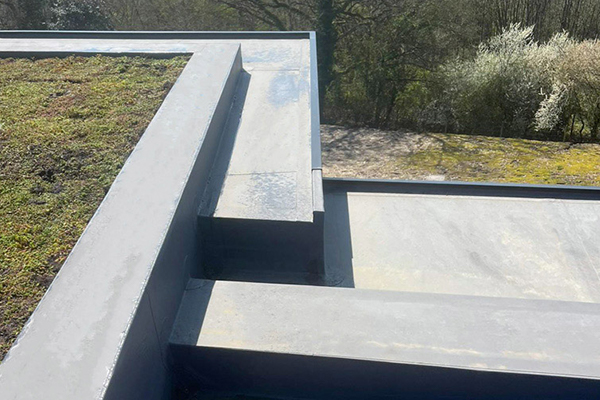

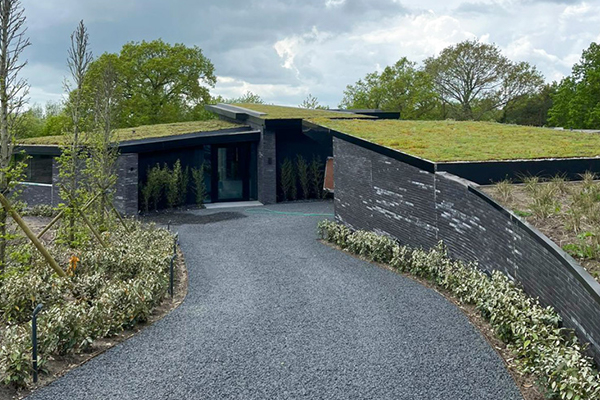

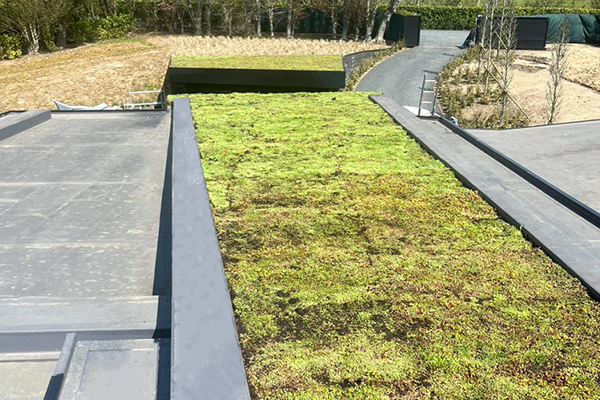

Design and Build Project
This has been a work in the making since 2021.
Collaborating with our award-winning Grand Designs client on the roof area design and build of this ultra-eco-friendly new build, tucked away in the South-east of England.
We began the process back in 2021 by laying the foundations: an IKO single-ply waterproofing membrane to an 800 square metre angled roof area.
Leaving the project at this stage to allow the finish of the whole build, we recently returned to complete the job.Picking up where we left off, we first applied a protection fleece to protect the roof from any damage, before laying a bio substrate layer, which will encourage a healthy draining system and will improve the growth of vegetation.

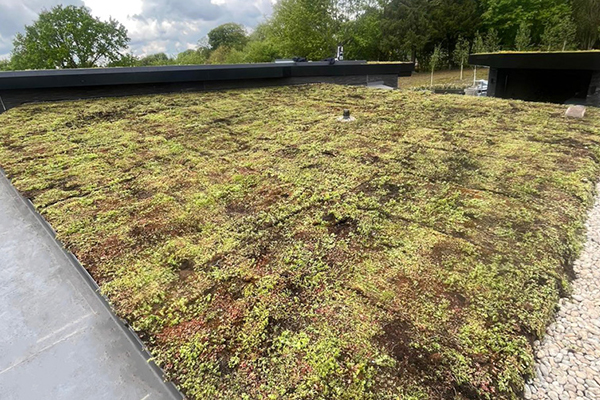

We finished with the sedum blanket to create the ‘green look’ with washed pebbles in the gutter areas which will prevent any drain blockage over time.
So here you see it, a finished project where we were involved right through from the design of the roof to the finishing touches.
We are looking forward to seeing where our client takes it next!
Police Station, Kent

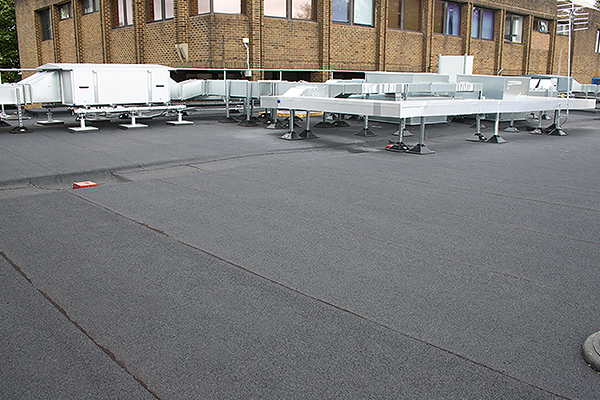

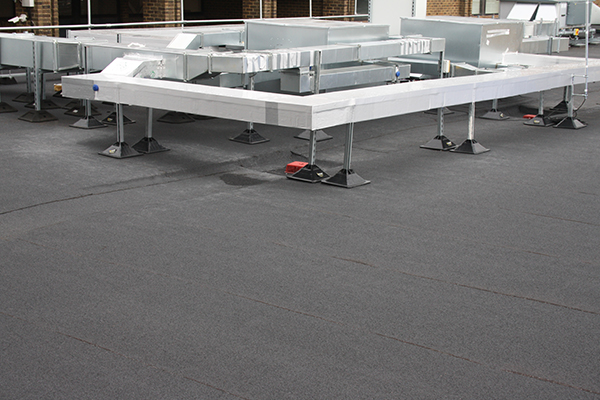

Here is an example of work we do for local authorities; a large refurbishment for a local Police Station. We applied an IKO Felt system to 800 square metres of roof on phase one of the project.

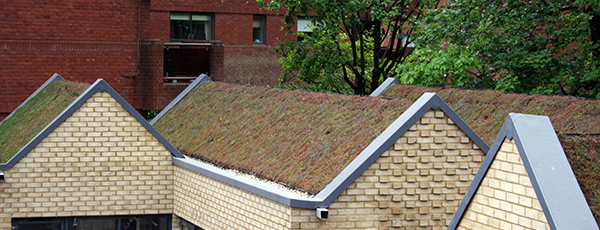

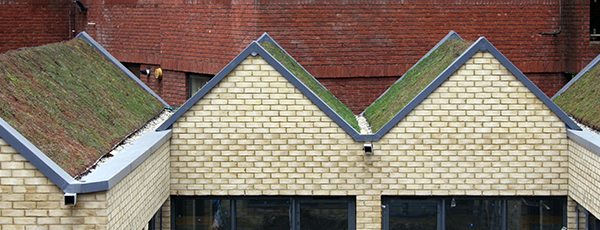

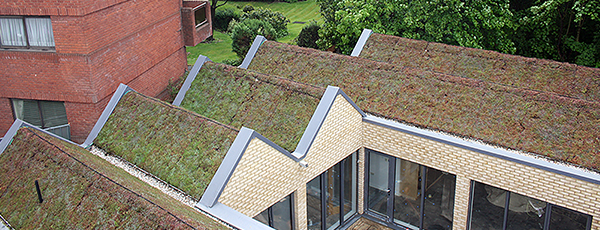

Spencer Courtyard Finchley, London
Our award-winning IKO Armourplan and Sedum Green Roof. This job was a self-build project for a developer. The job consisted of 13 individual pitch roof houses which was approximately 600 square metres, taking us 3 months to complete.
As you can see from the images the houses have very steep pitch roofs on both sides with a narrow gutter running along each side. There is capping detail on all sides of the roof which we did in IKO Armourplan fabricated trim. All the materials had to be mechanically fixed to the roof so the IKO Armourplan would not roll.
It is a very technical design and we had the responsibility of deciding how we would waterproof the roof and make the sedum work.
This project highlights that when working on a job for a major client it's not just the roofing we have to consider but the overall function of the build.

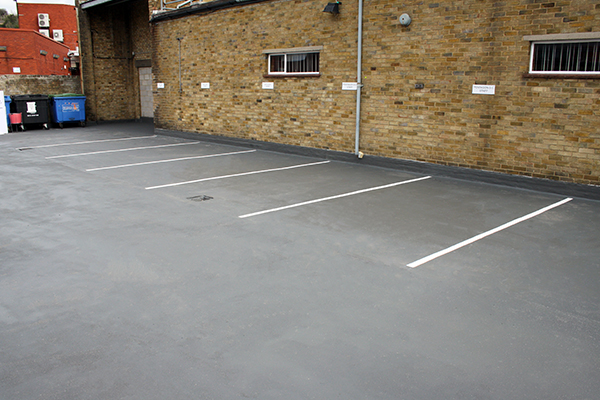

The Pentagon Shopping Centre, Chatham, Kent
We started here with a very worn out, old asphalt roof. With our recommendations we used the Westwood Liquid Waterproofing system to fully refurbish 400 square metres to transform and bring back to life the staff car park on top of the Pentagon Shopping Centre in Chatham, Kent.
The images show the final result after prepping, adding a waterproofing layer, self-level layer, final coat and the parking lines.

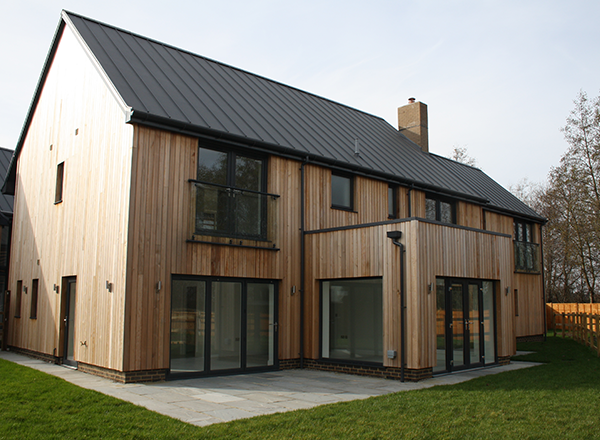

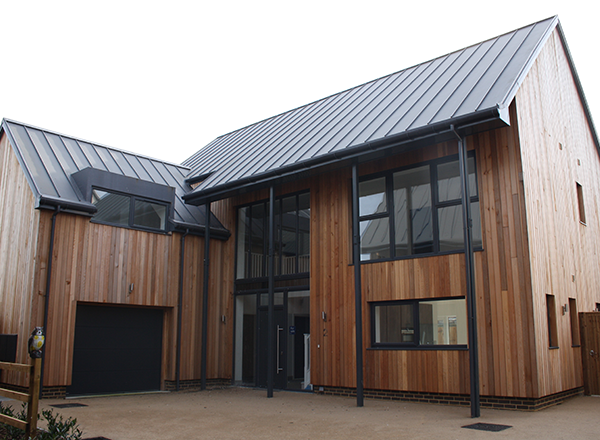

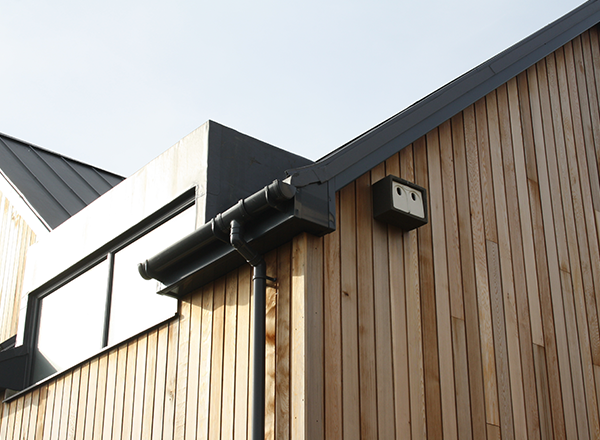

West Motney Way, Rainham, Kent
For this job we used the IKO Armourplan P Single ply Membrane system.
The job consisted of 3 houses totalling 800 square metres of pitch roof, taking us 6 weeks to complete.
It was a challenging job as the pitched roofs were angled at 45 degrees with a 15lm slope. We worked off scaffolding built to only half way up the roof which made injecting the membrane very difficult, so we needed to weld it whilst ensuring the standing seams remained straight.
You can see from the images how well we overcome the difficulty, finishing the roofs with such a high standard of workmanship.

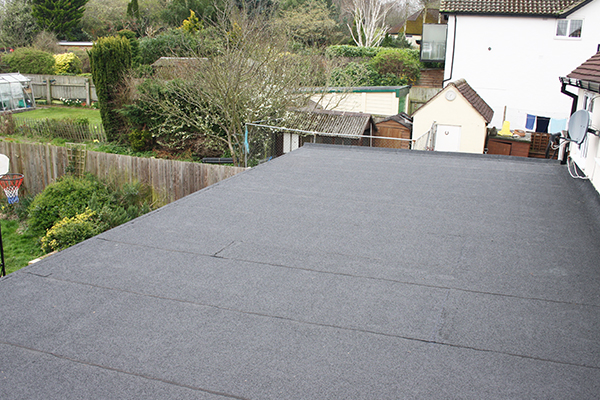

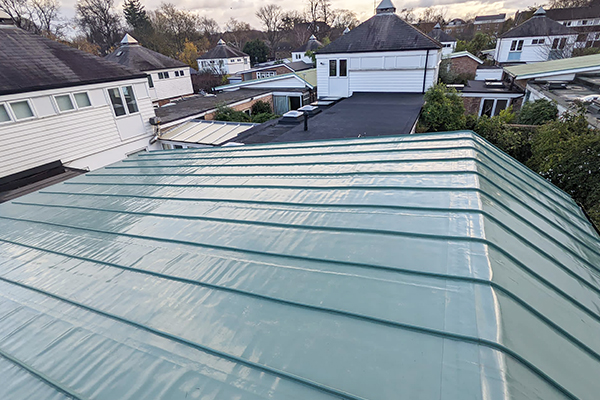

Private Residential work

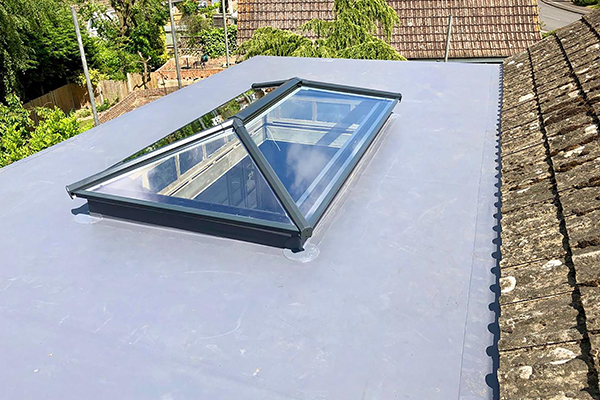

Above is a selection of examples of work we have produced for private clients.
No job is ever too big or small for us, we love working on your home extensions and refurbishments. Antony will work with you right through from the design stage to finish, ensuring we apply the best flat roofing system for your property.

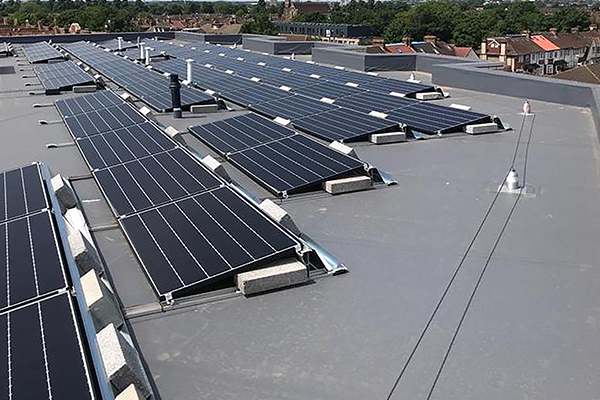

More Work

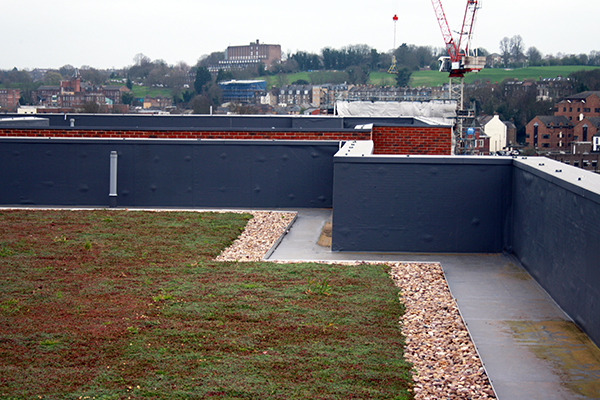

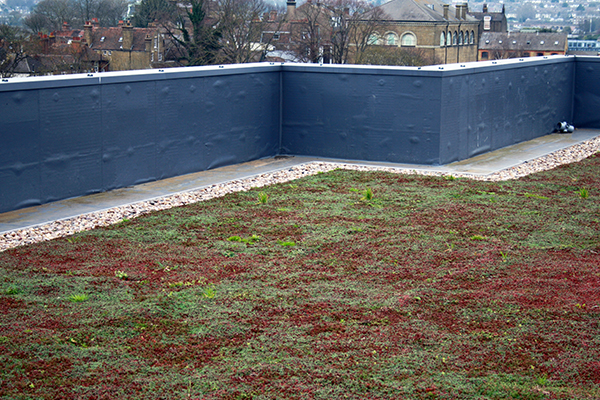

IKO Armourplan PSG Single ply Membrane and Sedum Green Roof system
Wolfin Single ply Membrane system
IKO Hot Melt, IKO Felt Tapered insulation and an IKO Armourplan PSG Fleece Single ply fully bonded system
